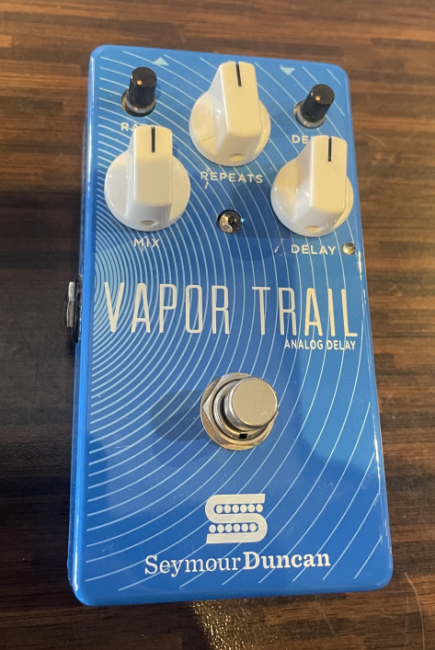

Seymour Duncan Vapor Trail~ Secondhand

Full Description

The tone also has a string clarity which prevents your sound from getting lost in the mix. Responsive modulation controls add shimmer and movement to your delay tone - with the Rate and Depth controls mounted right on the top panel so you can easily adjust them even in a live setting. This is helped by the fact that the Delay knob is translucent with a cool blue LED that flashes to give you visual feedback on the delay time you've selected.

A TRS insert jack allows you to add effects to the wet signal (loop the wet delay sound through a flanger, chorus, or other type of effect). You can also use this jack to output a wet-only signal for parallel effect loops or multi-amp setups, or you can plug in any standard volume-type pedal, crank the Mix knob to full, and vary the amount of wet signal from none to full-wet using the pedal. At maximum Wet setting, the first echo is actually 3dB louder than the dry signal.

Features/Specifications

• Type of Circuitry: Analog Bucket Brigade Devices (BBDs) supported by modern low-noise analog electronics. No microprocessors or digital signal processors.
• Bypass: True bypass
• Delay Range: 15ms to 600ms. Actual delay time indicated by flash rate of illuminated delay time knob.
• Dry Gain: 1dB fixed
• Wet Gain: Adjustable from muted to +3dB. At the highest blend settings, the first echo is actually louder than the dry signal.
• Repeat Control Range: One repeat to runaway repeats
• Modulation Rate Range: 0.2Hz to 4 Hz
• Modulation Depth Range: Zero to "over the top"
• Auxiliary Functions: Wet channel insert loop, allows external effects to be applied to only the wet signal. Also serves as a wet-only output for wet/dry stereo or studio use.
• Dry Frequency Response: <-1dB @ 10 Hz and 100 kHz
• Dry Distortion: 0.002% at 250 Hz, 1V RMS output
• Dry Noise Floor: -100dBv at output, 400Hz to 20kHz with input unplugged
• Wet Noise Floor: -90dBV at output, 400Hz to 20kHz
• Input Impedance: 1 Meg (active); open (bypassed)
• Output Impedance: 1K ohm
• Power: Internal 9V battery or external 9V-18V regulated power supply.
• Current Consumption: 11mA typical
• Dimensions: Chassis size 2.61" x 4.90" x 1.45" (W x L x H)
• Weight: 0.8lb. without battery
